Many years of experience in the field of rapid prototyping have made it possible for us to produce some especially ambitious small batches and prototypes.

We can advise you even in the design stage, in order to ensure a high quality of construction. The knowledge we have gained from numerous projects in relation to active surfaces, free spaces, loads, and the position in the constructed space, etc. contributes towards an optimum result.

The benefits at a glance:

  • many years of experience in construction for rapid prototyping and the use of the FDM procedure at professional level

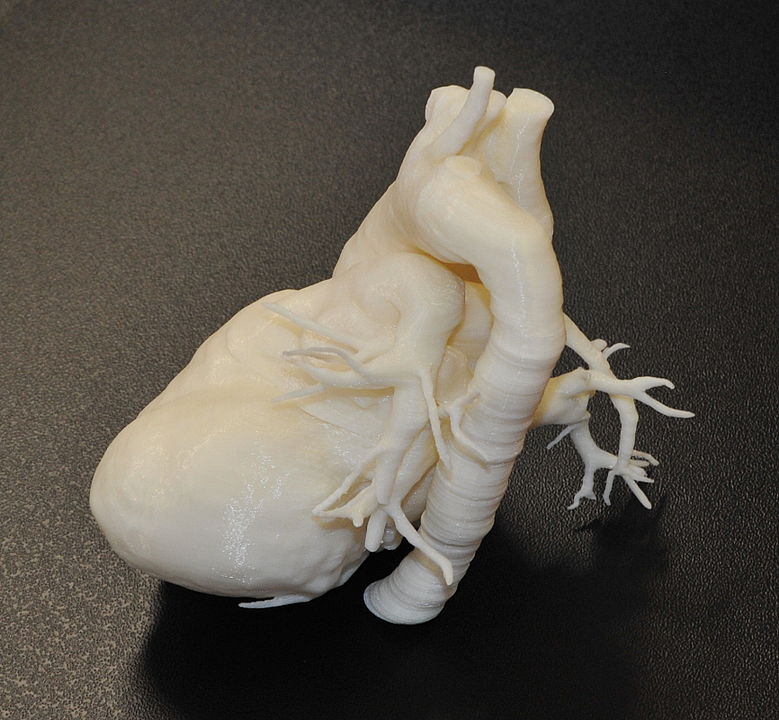

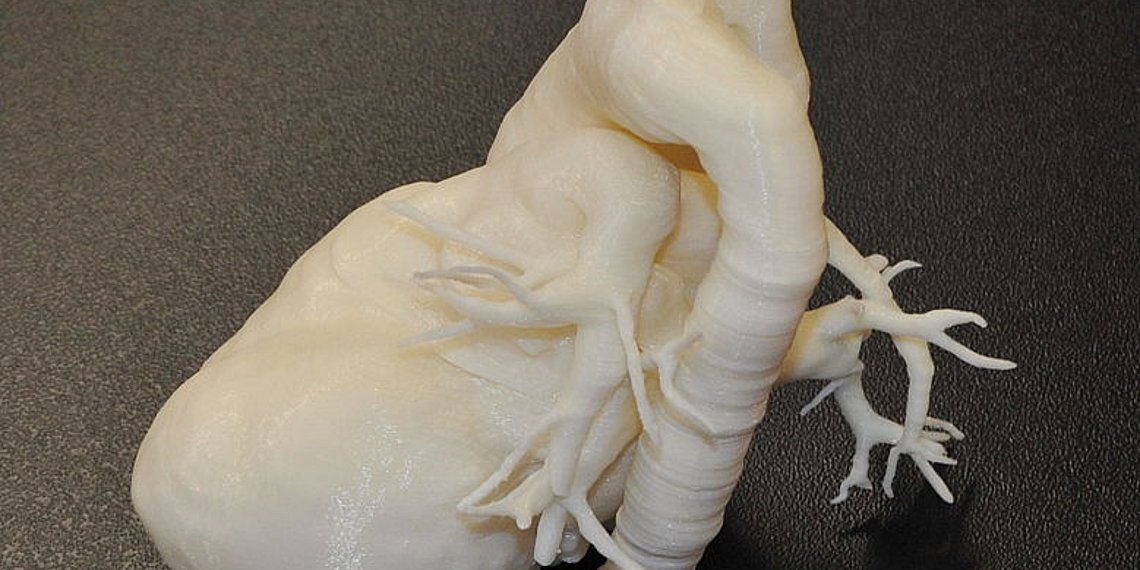

  • FDM technology for complex geometries and assemblies

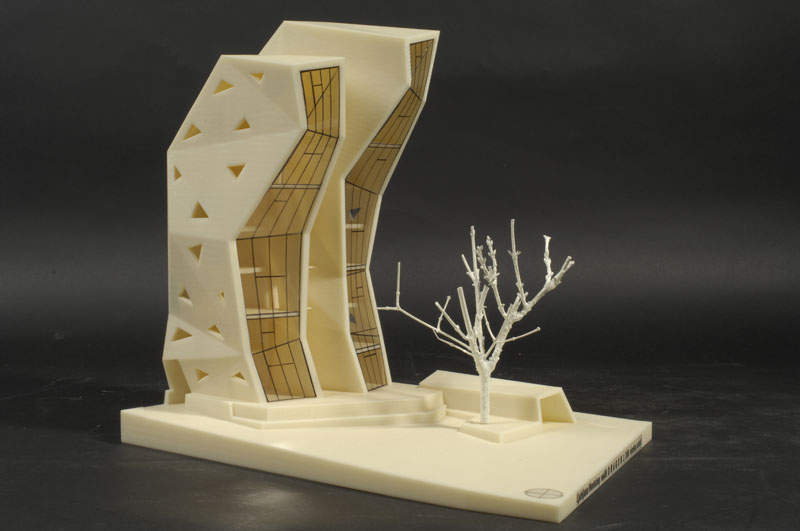

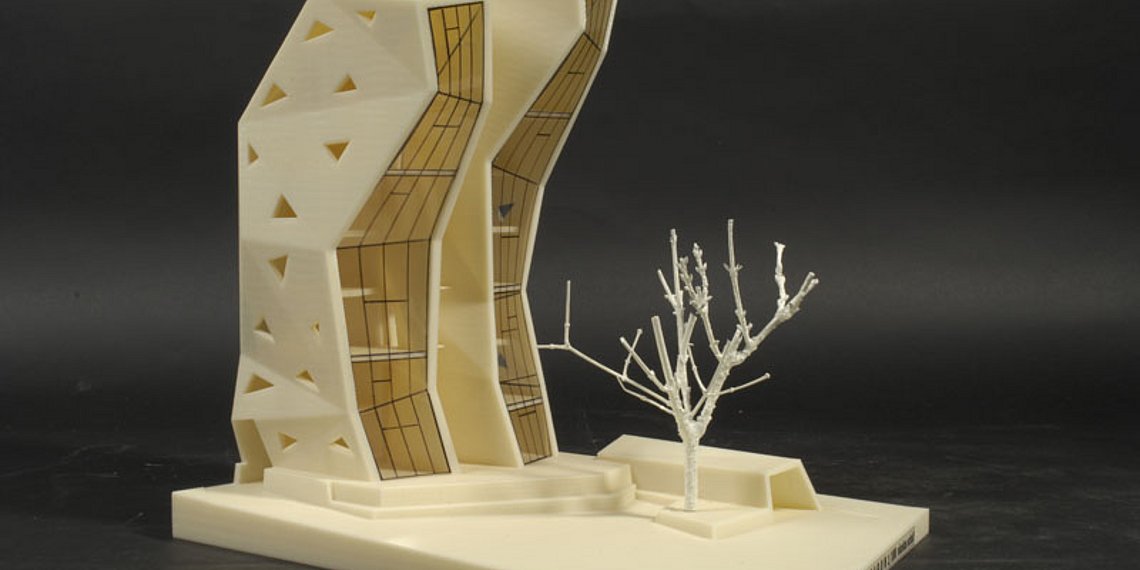

  • ideal for design, ergonomic, or functional studies

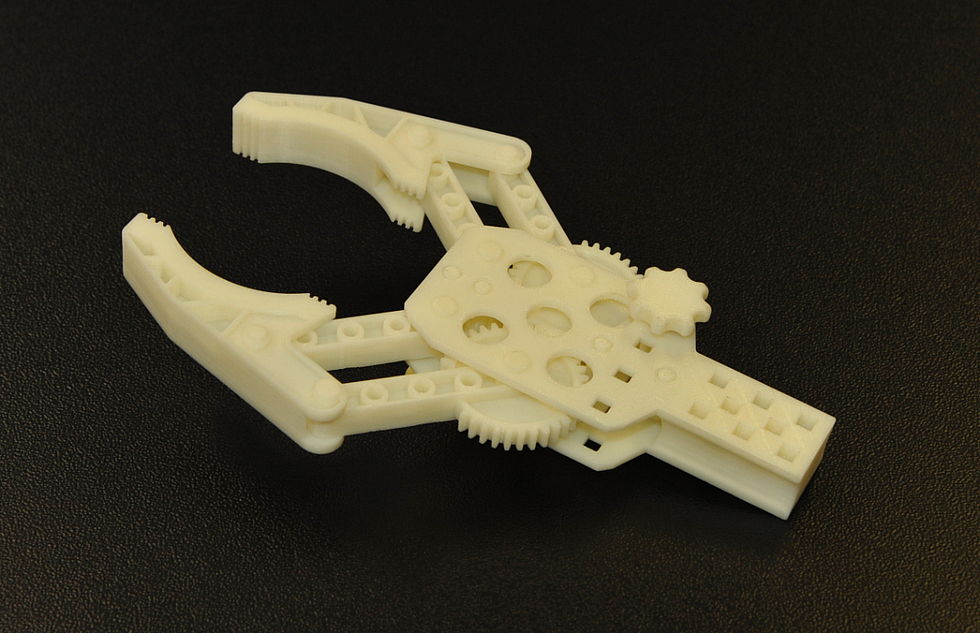

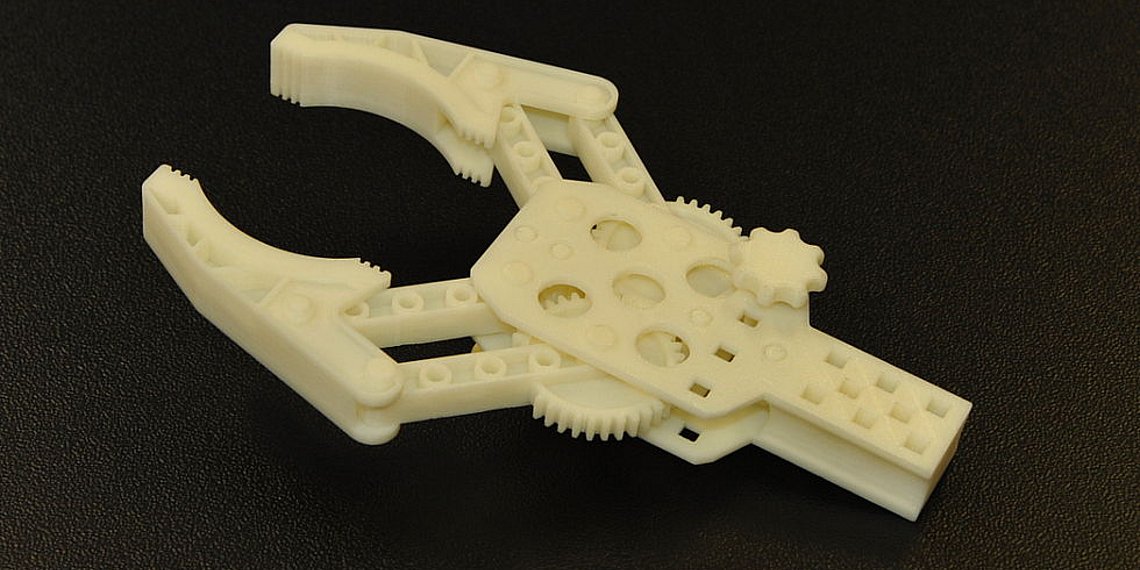

  • assemblies and moving components are produced in a single process step – no assembly necessary
  • above-average size of assembly space thanks to our large rapid prototyping system.

We produce your component using

Technical data

Plastic FDM system

Basic technology:
Fused Deposition Modelling (FDM)

Size of assembly space:
406 x 355 x 406 mm (LxHxW)

Available materials:

  • ABS-M30 with associated support material SR30

          Tensile strength: 36 MPa
          Tensile modulus of elasticity: 2,413 MPa
          Bending strength: 61 MPa
          Flexural modulus of elasticity: 2,317 MPa
          Density: 1.04 g/cm³

Control software:
Insight

System supplier:
alphacam, 76314 Schorndorf

Basic technology:
Selective Laser Melting (SLM)

Size of assembly space:

250 x 250 x 280 mm (LxHxW)

Available materials:

  • Stainless steel CL 20ES, V4A, 1.4404, X 2 CrNiMo17 13 2, 316L

          Tensile strength: 570 MPa
          Yield strength: 470 MPa
          Hardness: 20 HRC

  • Aluminium CL 30AL, derived from DIN EN 1706 according to AlSi12(a)

          Tensile strength: 310-325 MPa
          Yield strength: 170-220 MPa

Control software:
Materialise Magics

System supplier:
ConceptLaser GmbH, 96215 Lichtenfels
